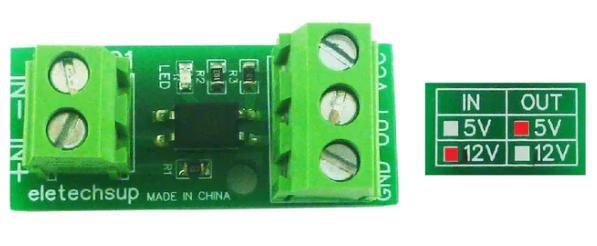

In 9-24V Out 3-8V 3-24V NPN PNP Signal Mutual Converter Logic Level Isolator
Tiếng việt:
Bo mạch điện tử chuyển đổi tín hiệu PNP 12VDC > 5.0/3.3 VDC

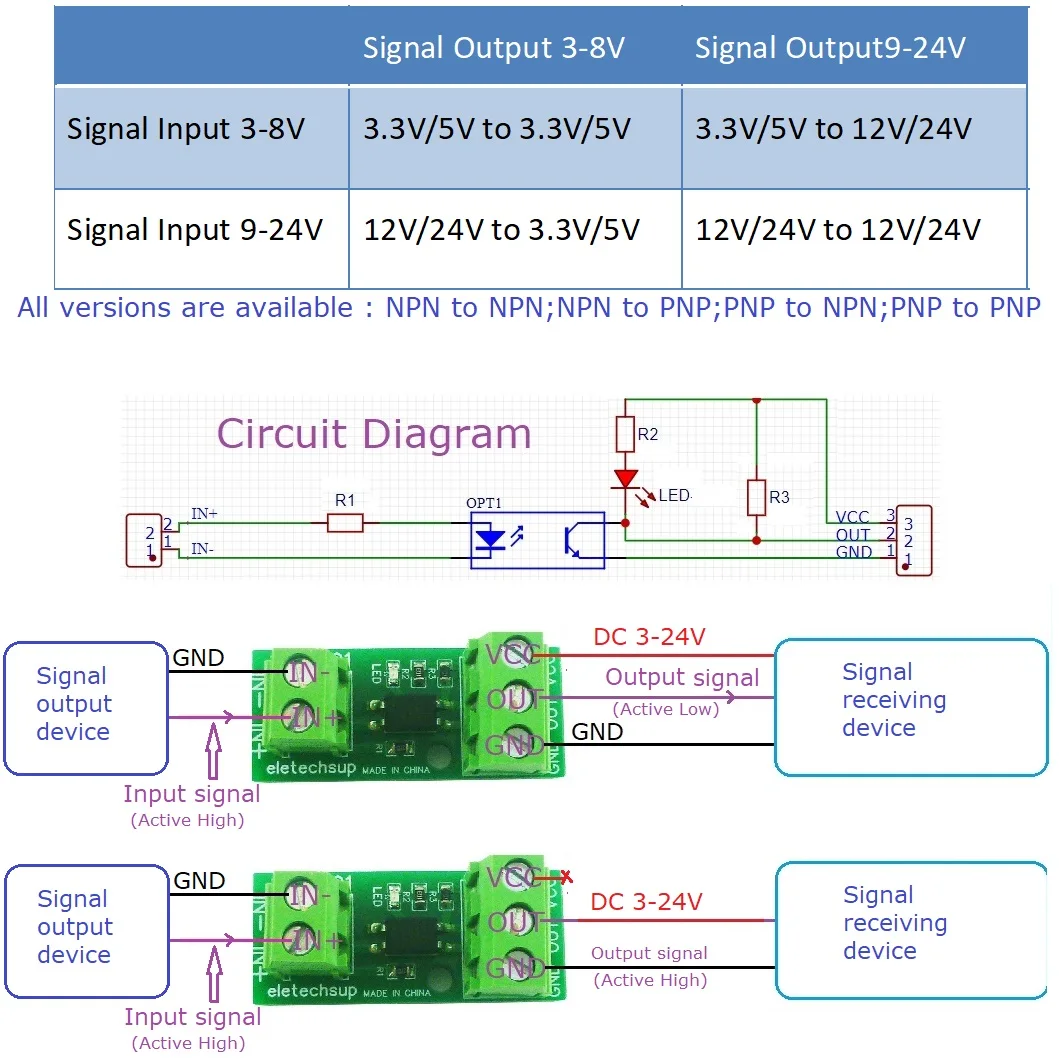

This is a one-channel photoelectric isolation module, which can realize NPN/PNP mutual conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.
Input level : 3-8V/9-24V two versions
Output level: 3-8V/9-24V two versions
Working current: 3-8V out version 4-7MA; 9-24V out version 6-12MA
Input signal type: NPN/PNP
Output signal type: NPN/PNP
Input signal current: 3-8V version 4-15MA; 9-24V version 3-9MA
Output signal current: 3-8V version 1-3MA; 9-24V version 2-5MA
Isolation voltage: 3000V
Signal frequency: <10KHz
Working temperature: -40-110 degrees Celsius
Conversion type: NPN to NPN; NPN to PNP; PNP to NPN; PNP to PNP
Size: 40*17*18MM
Weight: 8.2 grams
